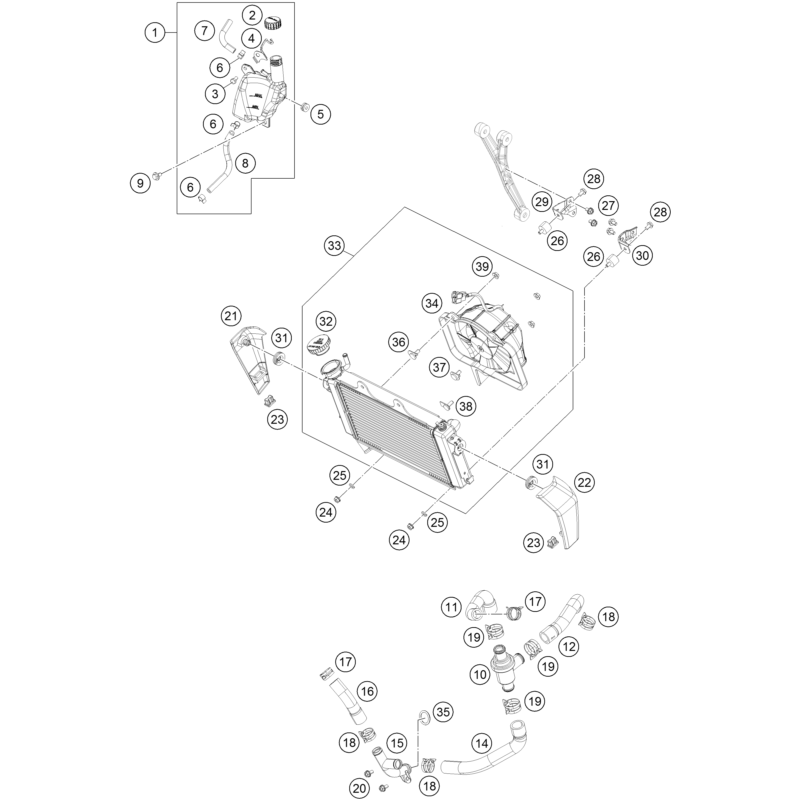

SYSTÈME DE REFROIDISSEMENT

Cet éclaté est compatible avec : 125 DUKE ORANGE ABS 2016

SYSTÈME DE REFROIDISSEMENT 90135065033 90135066000 J025060126 90103001033 90135065050 90107018011 90107018011 90107018011 90135067000 90135067050 90135074000 90135017000 90135024020 90135025100 90135024010 90635071033 90135024030 90135020000 90135020000 90135020001 90135020001 90135020001 90135020003 90135020003 90135020003 J028060164 90108061000 90108060000 90108060002 90108060002 J926060000 J926060000 J127060003 J127060003 90135001001 90135001001 J025060103 J026060083 J026060083 90103006001 90103005001 90108060001 90108060001 90135016100 90635010000 90835041033 J770018530 90835041001 90835041002 90835041003 90835041004

Liste des pièces

Pos. Référence Désignation Prix unitaire Stock Quantité préco Quantité
1 90135065033 EXPANSION RESERVOIR CPL. 32,94 € (27.45 HT) Disponible le 07/11/2025 1
2 90135066000 PLUG F. EXPANSION TANK 4,56 € (3.8 HT) Sur commande 1
3 J025060126 HH COLLAR SCREW M6X12 SW10 1,68 € (1.4 HT) Sur commande 1
4 90103001033 BRACKET TUBE DRAIN 6,06 € (5.05 HT) Sur commande 1
5 90135065050 GROMMET EXPANSION TANK 2,28 € (1.9 HT) Sur commande 1
6 90107018011 CLAMP 10MM 2,10 € (1.75 HT) Sur commande 4
7 90135067000 HOSE 6X10,5X80 MM 6,72 € (5.6 HT) Sur commande 1
8 90135067050 HOSE 6X10X154 MM 8,40 € (7 HT) En stock 1
9 90135074000 SPECIAL SCREW M6X12 FLANGED 2,58 € (2.15 HT) Sur commande 1
10 90135017000 THERMOSTAT 34,32 € (28.6 HT) Sur commande 1
11 90135024020 RADIATORHOSE THERM.-RADIATOR 16,80 € (14 HT) Sur commande 1
12 90135025100 COOLING HOSE ENGINE - THERM. 20,16 € (16.8 HT) Sur commande 1
14 90135024010 RADIATORHOSE THERM.-COOL.PIPE 20,16 € (16.8 HT) Sur commande 1
15 90635071033 COOLANT PIPE T 26,04 € (21.7 HT) Sur commande 1
16 90135024030 RADIATORHOSE RADI.-COOLL. T 16,80 € (14 HT) Disponible le 23/06/2025 1
17 90135020000 HOSE CLAMP D23 3,18 € (2.65 HT) Sur commande 2
18 90135020001 HOSE CLAMP D26 3,66 € (3.05 HT) Sur commande 3
19 90135020003 HOSE CLAMP D28 3,66 € (3.05 HT) Sur commande 3
20 J028060164 BOLT FLANGE M6X16 1,68 € (1.4 HT) Sur commande 2
21 90108061000 RADIATOR PROTECTOR R/S 18,84 € (15.7 HT) Sur commande 1
22 90108060000 RADIATOR PROTECTOR L/S 18,84 € (15.7 HT) Sur commande 1
23 90108060002 DAMP. RUBBER II RADIATOR PROT 2,10 € (1.75 HT) Sur commande 2
24 J926060000 FLANGED NUT M6 WS10 SELF LOCK. 1,02 € (0.85 HT) Sur commande 4
25 J127060003 WASHER SPRING B6 0,84 € (0.7 HT) Sur commande 4
26 90135001001 SILENTBLOC M6 4,20 € (3.5 HT) Sur commande 4
27 J025060103 HH COLLAR SCREW M6X10 SW10 1,68 € (1.4 HT) Sur commande 4
28 J026060083 HH COLLAR SCREW M6X8 SW10 1,68 € (1.4 HT) Sur commande 4
29 90103006001 RADIATOR SUPPORT R/S BELOW 6,06 € (5.05 HT) Sur commande 1
30 90103005001 RADIATORSUPPORT L/S BELOW 6,06 € (5.05 HT) Sur commande 1
31 90108060001 DAMPING RUBBER I RADIATOR PROT 2,40 € (2 HT) Sur commande 2
32 90135016100 RADIATOR CAP 17,64 € (14.7 HT) Sur commande 1
33 90635010000 RADIATOR CPL. WITH FAN 352,80 € (294 HT) Sur commande 1
34 90835041033 FAN CPL. 147,42 € (122.85 HT) Sur commande 1
35 J770018530 O-RING 18,5X3 1,20 € (1 HT) Sur commande 1
36 90835041001 BRACKET FAN MOUNTING 1 4,08 € (3.4 HT) Sur commande 1
37 90835041002 BRACKET FAN MOUNTING 2 4,08 € (3.4 HT) Sur commande 1
38 90835041003 BRACKET FAN MOUNTING 3 4,08 € (3.4 HT) Sur commande 1
39 90835041004 FLANGED NUT 2,28 € (1.9 HT) Sur commande 3
